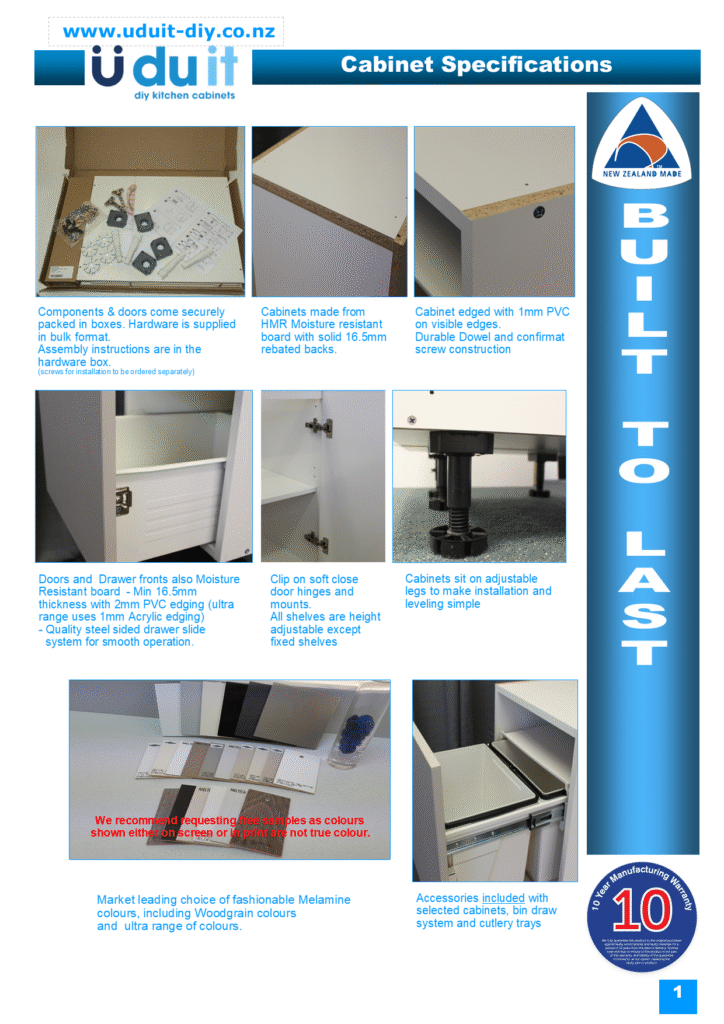

Cabinet Specifications

Please note the following specifications are for UDUITs standard Cabinet range not the Minimal cabinet range.

Cabinet components and fronts along with easy to follow assembly instructions come securely packed in cartons. (screws for installation of the cabinet can be ordered seperately)

UDUIT cabinets are made using 16.5mm Moisture Resistant white melamine board with 1mm pvc edge tape on visible edges. Cabinets are constructed using a durable and strong dowel and confirmat screw construction.

Our cabinets are made with a solid 16.5mm rebated back adding to the strength and rigid cabinet construction.

Market leading choice of fashionable Melamine and Acrylic laminate colours, including woodgrain colours and our Ultra colour range.

Accessories included with selected cabinets line the bin drawer cabinet and cutlery trays.

GENERAL DETAILS

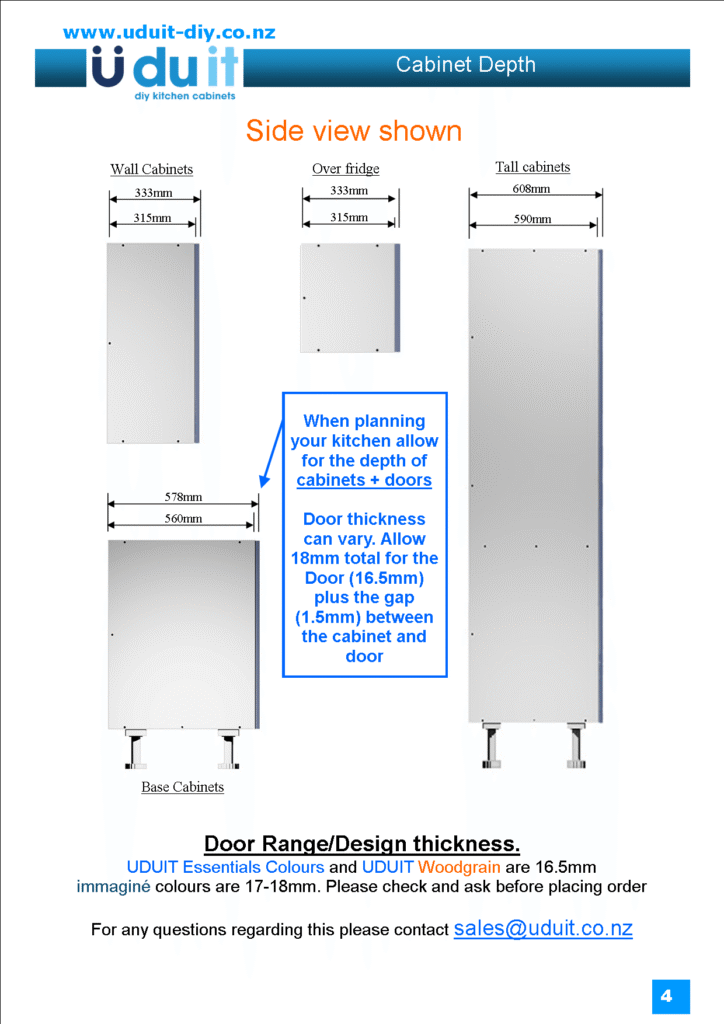

Floor (Base) cabinets are 578mm deep (including the door or drawer front)

• Wall cabinets are 333mm deep (including doors)
• Tall (Pantry) cabinets are 608 mm deep (including doors). Tall Panels are 610mm deep to allow for benchtop overlap and adjustments

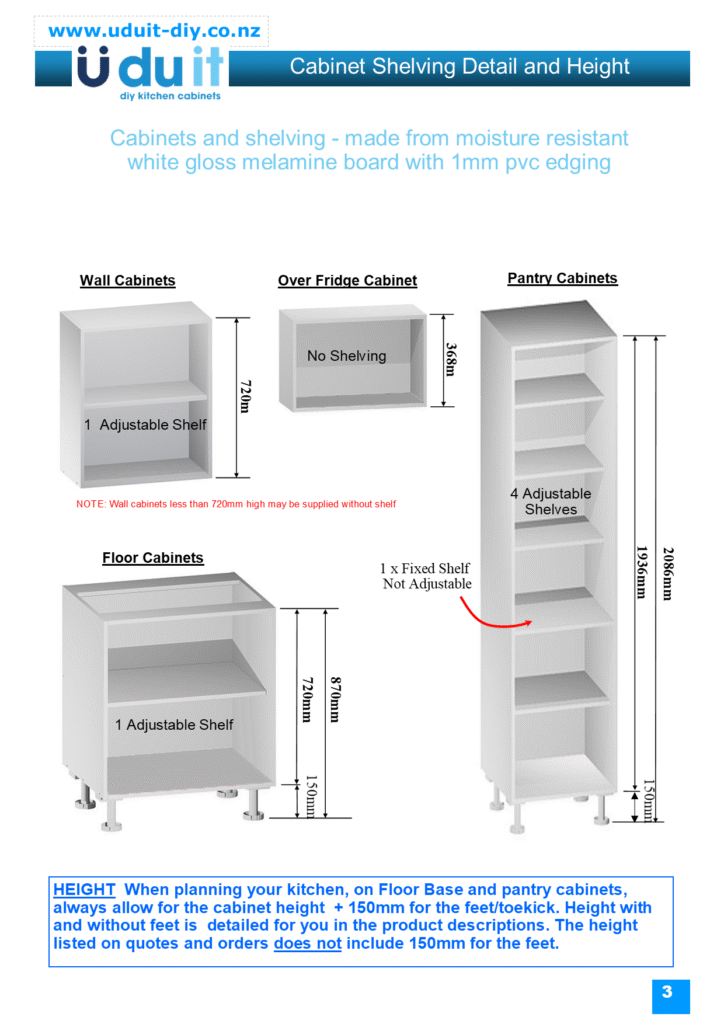

• When planning allow 150mm for feet/toekick height underneath Floor and Tall cabinets . The ordering system deducts this 150mm. The cabinet gallery includes door thickness in depth and 150mm feet in height.
• Oven/microwave tower is 608mm depth. This cabinet includes 2 tall coloured end panels. The width including the end panels is 633mm. Height including end panels and feet is 2086mm
• Corner  Pantry cabinets require pantry end panels to each side even if it is next to a pantry cabinet – exception is if the oven tower is placed next to the corner pantry.
• Wine rack is fully coloured and can be used as a wall or base cabinet. Feet are not required
• The Blind corner cabinet comes with extended panel designed to butt up against the wall
• Cabinets are made from moisture resistant white gloss melamine board with 1mm pvc edging.
• Doors, Drawer fronts, and panels in the UDUIT Colours and UDUIT Woodgrain ranges are made from Moisture resistant 16.5mm coloured melamine board with 1 or 2mm PVC edging.Edge tape is determined by colour.
• The Ultra colour Range acrylic doors and panels are made by laminating the acrylic laminate on to E1 grade 16.5mm board..Finish on the reverse side is White Melamine.

Selected ultra colour panels are laminated both sides. Edging is colour matched with approx 1mm thickness laminate. You can also choose to have the face colour on both sides of the panel using the Made to measure panels (F1S and F2S)

About New Zealand board

New Zealand’s leading producers leads the world in the supply of sustainably managed, low emission engineered board. Setting the standard in the Kitchen Industry for market leading colour choice, affordability and durability – they will look great for years to come.

As mentioned above board used in our cabinetry is sourced from New Zealand suppliers. Why is this important? New Zealand has lead the way globally in the production of low emission engineered wood products like MDF and Particle Board. Sourced from New Zealand’s sustainable Radiata plantations, wood fibre from timber processing is re-engineered in to Particle Board and MDF. Historically New Zealand exported these products to the exacting Japanese market – therefore producers have lead globally in the manufacture of healthy low emission board. Special (meaning expensive!) drying equipment and resin is needed to produce to this quality. When you buy New Zealand there are not risks about health issues or quality.

• Particle board is impregnated with Melamine to produce the smooth, durable surface. Melamine is coloured kraft paper, impregnated with resin and bonded in to the surface of the board producing a hardy, colourful, and incredibly durable product. If you wipe moisture spills away, and look after your kitchen reasonably, it will look as good as new for years to come.
